uPVC

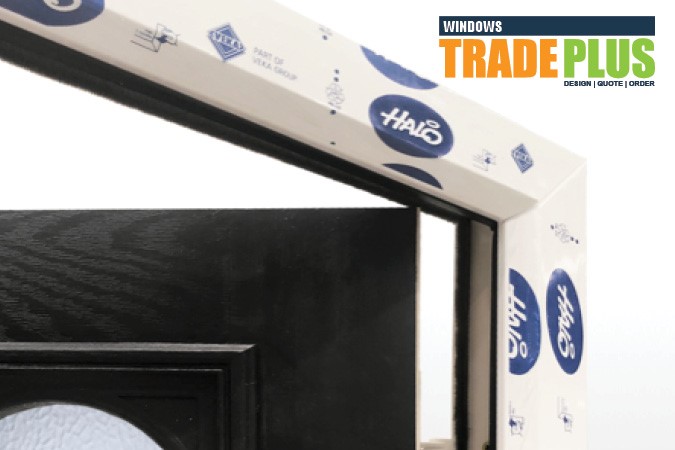

VEKA uPVC is a high-grade profile that is a fully-integrated 70mm system, chamfered, and is used nationally all over the UK for composite doors to give the door a more traditional look. The VEKA system meets all requirements for thermal efficiency as standard, and a wealth of intelligent design features have been added in the development of the profile.

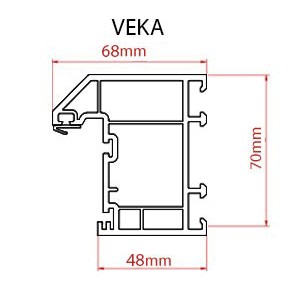

Below you will find the profile dimensions which relates to the VEKA uPVC profile.
Slabs
Windows Trade Plus use the Door-stop door slabs which are a household name throughout the UK. The slab is 44mm thick, GRP skinned, and come in a range of designs. To give great definition and long-life performance Door-Stop slabs use glass reinforced plastic skins. For keeping people safe, secure and protected against all weather conditions. It's used today to make the hulls of boats because it's super-strong and has exceptional wind and water resistance. That's why we use it for our composite doors.
The average rainfall in the UK is between 700mm a year in East Anglia, and up to 3,000mm a year in the Scottish Highlands. To make sure Door-Stop slabs are up to this demanding task they are tested in a pressurised chamber to stimulate gusting winds starting at 63 miles an hour and up to 80 miles an hour. Then they are tested further by spraying two litres of water every minute directly at the door in their test chamber.
Window resistance: tested in accordance with BSEN 12211: 2000
Air Permeability: tested in accordance with BSEN 1026: 2000
Water tightness: tested in accordance with BSEN 1027: 2000
Edging: The hinge edge of your door has a PVC edging. Then we cut through the edging so that the hinge sits neatly inside the edge of your door. To make the door super-strong, the lock edge has been fitted with a full length of 4mm thick, powder-coated aluminium lock strip. Then your preferred lock sits flush inside your door.
Additional Links
Below you will find the technical documentation which relates to the composite door slabs.
Door Cassettes
Door glazing is secured using colour and finish matched cassettes. These are secured using security glazing clips, and screwed together from internally increasing security. These are re-glazable to change glass design should you wish at anytime in the future.
Additional Links
Below you will find the technical documentation which relates to the composite door cassettes.
Tolerances
The manufacturing tolerances for composite doors and/or side panels are compliant with the British Standard requirements of +/-3mm.
Slabs

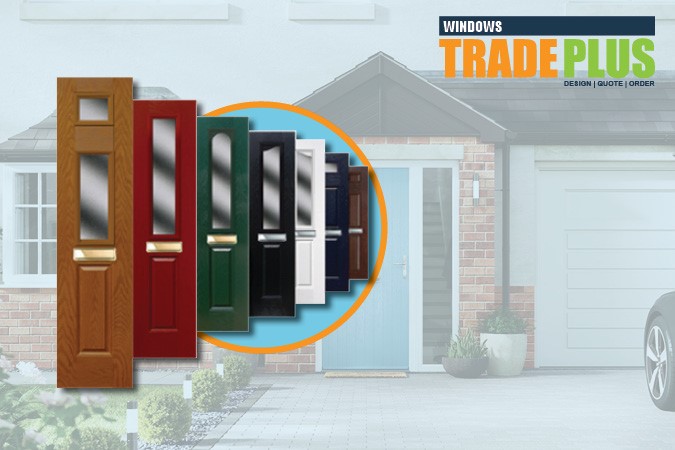

The door can be as individual as you like. Three new door colours; Poppy Red, Duck Egg Blue and Black Brown, have added to our existing ten; White, Black, Blue, Red, Green, Oak, Darkwood, Cream, Grey and Chartwell Green.
We also offer colour all-round options, and 9 frame colours - white, mahogany, cherrywood, oak, white grain, brown-black, grey, cream and Chartwell green - to compliment your new door colour. All of which can be configured with gold, chrome, black, white and contemporary hardware; it's easy to see how there are over 5 million types of your door designs.
Black Brown
Black
Blue
Chartwell Green
Cream
Dark Wood
Duck Egg Blue
Green
Grey
Light Oak
Poppy Red
Red
White
Building Regulations and Certification
Veka meets all requirements not only for UK and European building regulations, under instruction Veka can be manufactured to conform to Document Q approval, PAS 24 approved, Secured by Design solutions. All items are British Standards group approved, under ISO 9001 / ISO14001 / OHSAS18001, Veka's commitment to responsible sourcing BES6001 license produces all this, put together reflects the commitment to quality and increases the supply chain's open and honest approach.
For more information, please see the building regulations page.
Composite Side Panels
Composite door panels used in side panels are made in the same way that the slab is made, and are installed into the frames as you would glass. These are 28mm overall in width, and the glazing is the same as the composite door glazing. The colours and colouring process is the same as the slabs.
Additional Links
Below you will find the technical documentation which relates to the composite side panel specification.
When you choose Windows Trade Plus - you'll be choosing a Company that's easy to do business with. Our windows and doors come with a whole host of unique features and benefits that ensure you're fitting quality products in your home or if you're in the trade, your customers' houses too. Plus, our online quote designer and ordering system enable you to cost your jobs speedily and instantly order them, it's a great way to keep your projects on track.
